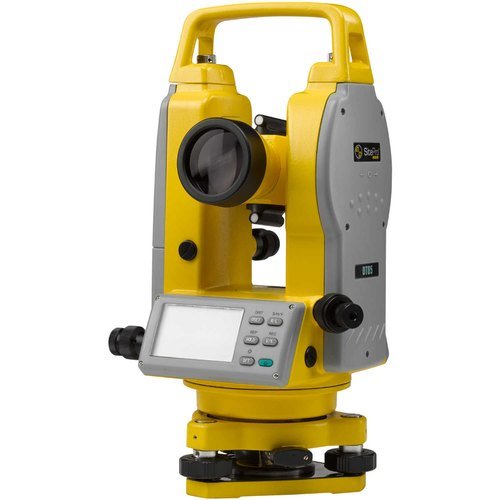

Digital Theodolite at best price from leading manufacturers, supplier and exporter In India. We supply civil engineering lab instruments worldwide for years, ensuring quality, durability and reliability. Feel free to contact us for product detail information or product quote contact us via email and live chat support.
| Specifications | A | B |
| Angle Measurement | ||
| Measuring Method | Absolute Code | |
| Raster Diameter | 79mm | |
| Min Display Unit | 1″/5″ Selectable | |
| Accuracy | 2″ | 5″ |
| Horizontal Angle | Dual | |
| Vertical Angle | Dual | |
| Telescope | ||
| Image | Erect | |
| Tube Length | 157mm | |
| Effective Aperture | 45mm (EDM:50mm) | |
| Magnification | 30x | |
| Field of view | 1°30′ | |
| Minimum Focusing Distance | 1.4m | |
| Resolving Power | 3″ | |
| Stadia Ratio | 100 | |
| Stadia Constant | 0 | |
| Auto Compensator | ||
| System | Liquid-Electric Detection | |
| Work Range | ±3′ | |
| Resolving Power | 1″ | |
| Vial | ||
| Plate Vial | 30″/2mm | |
| Circular Vial | 10′/2mm | |
| Optical Plummet | ||
| Image | Erect | |
| Magnification | 3x | |
| Focusing Range | 0.5m~∞ | |
| Field of View | 5° | |
| Display | ||
| Type | LCD Display 2 Sides | |
| On-Board Battery | ||
| Power Supply | Rechargeable Ni-H Battery/AA Battery | |
| Voltage | DC 6V | |
| Continuous Operation Time | 10 Hours | |
| Size & weight | ||
| Dimension | L145xH318xW179 | |
| Weight | 5.2Kg | |
