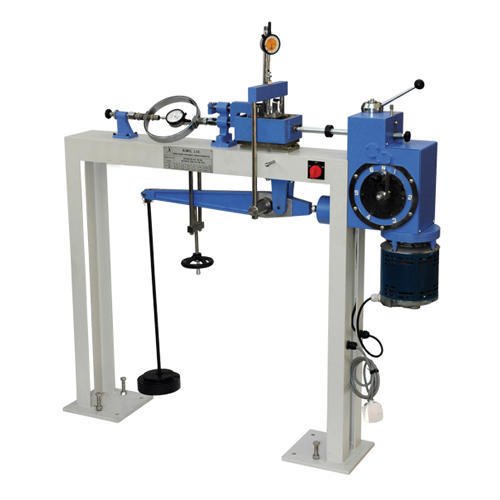

Direct Shear Test Machine Manufacturer In India
Direct Shear Test Machine at best price from leading manufacturers, supplier and exporter In India. We supply civil engineering soil lab instruments worldwide for years, ensuring quality, durability and reliability. Feel free to contact us for product detail information or product quote contact us via email and live chat support.
Features :
- The Equipment is designed to test resisting shear strength of soil specimen. The facility of the machine to test four specimen under different vertical pressureThe electric strain direct shear testing apparatus is used to test the resisting shear strength of soil specimen.
Technical Specifications :
- Area of soil sample : 30 cm2
- Lever ratio : 1:12
- Vertical loading : 50, 100, 200, 300, 400 KPa
- Horizontal loading : 1.2 KN
- Shear rate : 5, 2.4, 1.5, 1, 0.8, 0.02, 0.01 mm/min
- Specimen size : 30cm2
- The working table is made of : Stainless steel
- Pushing mechanism : Stepping Motor
- High Precision & Low Noise
- Control system : MCU
- Speed : Variable
- Display system : LCD / LED
- Power Supply : 220 ~ 240 V AC, 50~60 Hz
